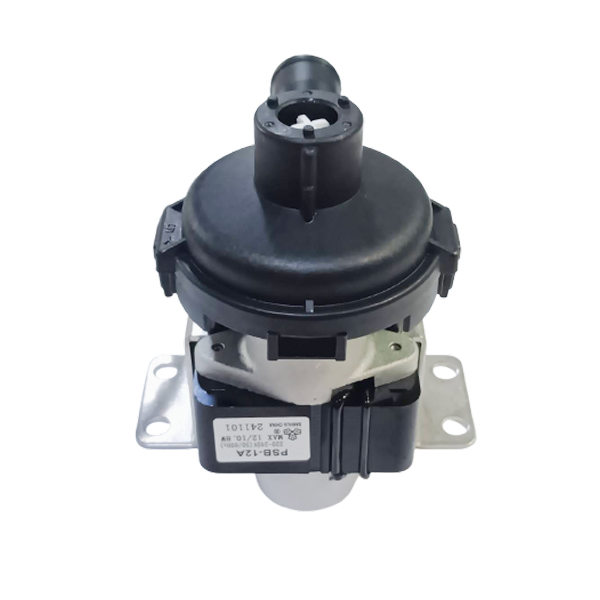

Description SANHUA Drain Pump รุ่น PSB-12(A) YKT-2 Specification Rated voltage : AC220~240V-50/60Hz Voltage range : ± 10%V rated voltage Current : 114/92 mA(AC230V-50/60Hz)Max. (on drain) Input : 12/10.8 W(AC230V-50/60Hz)Max. (on drain) Insulation class : class “E” Fluid : Drain water Fluid temperature : 0°C to 40°C (but no frozen water) Operating ambient temperature : -10°C to 45°C Storage temperature : -20°C to 70°C Ambient humidity : 95%RH Max. Discharging : 24L/h(400ml/min)Min. (1200mm lift 10mm water level rated voltage) fluid volume : or 30L/h(500ml./min)Min. (850mm lift 10mm water level rated voltage) Noise Max. : 40dB per “A”scale (1 meter distance from drive motor head empty operating ,1200mm lift 10mm water level rated voltage) Insulation resistance : 100MQ or more at 500V.DC (at normal temp.& humid) Dielectric strength : withstand AC1500V for one minute or AC1800V for one second. Temp. rise : 75K (resistance method). (at rated voltage, 1200mm lift,10mm water level) Specifications of Motor : Type: Single phase 2 poles shaded induction motor Bearing :0il impregnated sintered bearing. Life span : 15000h (At rated voltage and with 1200mm lift,10mm water level). The discharge port of intensity : 150N MIN.
